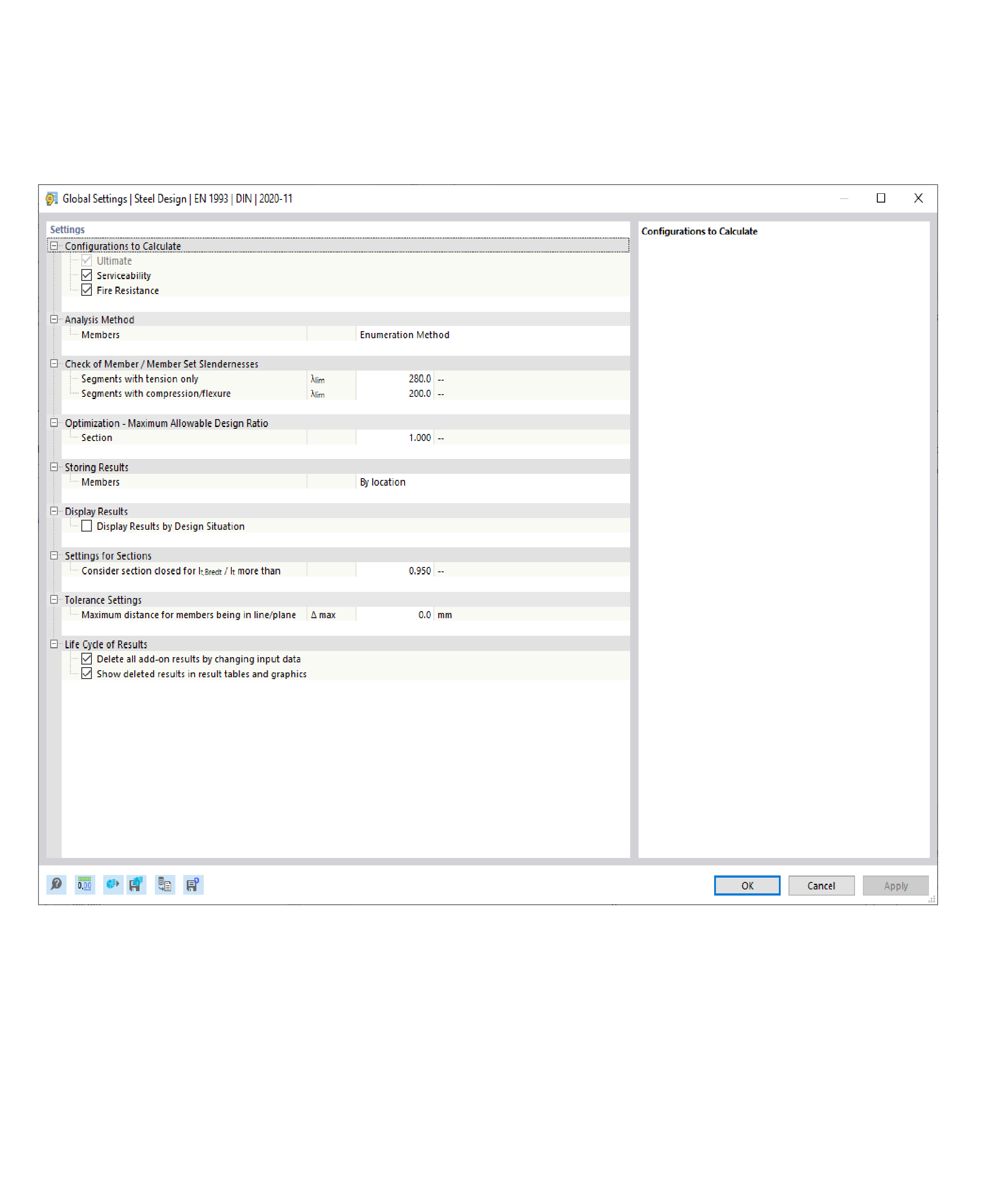

Design Settings#

In this example we will demonstrate:

Retrieving Design Settings tree table
Extracting specific values
Modifying and setting values

from dlubal.api import rfem, common

# Connect to the RFEM application
with rfem.Application() as rfem_app:

    # Step 1: Retrieve the global settings tree table for Steel Design (active model)
    design_settings: rfem.GlobalSettingsTreeTable = rfem_app.get_design_settings(
        addon=rfem.DesignAddons.STEEL_DESIGN
    )
    print(f"DESIGN SETTINGS:\n{design_settings}")

    # Step 2: Retrieve a specific value
    # Path to access specific value
    member_slendernesses_path = [
        'member_slendernesses',
        'member_slendernesses_tension_ec3'
    ]
    # Get and print specific value
    member_slendernesses_val = common.get_tree_value(
        tree=design_settings,
        path=member_slendernesses_path
    )
    print(f"\nMember slendernesses: {member_slendernesses_val}")

    # Step 3: Modify the value and save the updated design settings
    # Set a new value
    common.set_tree_value(
        tree=design_settings,
        path=member_slendernesses_path,
        value=280,
    )
    # Apply the updated design settings to the model
    rfem_app.set_design_settings(
        addon=rfem.DesignAddons.STEEL_DESIGN,
        global_settings_tree_table=design_settings
    )

using Rfem = Dlubal.Api.Rfem;
using Common = Dlubal.Api.Common;

ApplicationRfem? RfemApp = null;

try
{
    RfemApp = new ApplicationRfem();

    // Step 1: Retrieve the global settings tree table for Steel Design (active model)
    Rfem.GlobalSettingsTreeTable? designSettings = await RfemApp.get_design_settings(
        addon: Rfem.DesignAddons.SteelDesign
    );
    Console.WriteLine($"DESIGN SETTINGS:\n{designSettings}");

    // Step 2: Retrieve a specific value
    // Path to access the member slenderness setting
    var memberSlendernessesPath = new List<string> {
        "member_slendernesses",
        "member_slendernesses_tension_ec3"
    };
    // Fetch the value of the specific setting
    var memberSlendernessesVal = Common.TreeHelpers.GetTreeValue(
        tree: designSettings,
        path: memberSlendernessesPath
    );
    Console.WriteLine($"Member Slenderness: {memberSlendernessesVal}");

    // Step 3: Modify the value and save the updated design settings
    // Set a new value
    Common.TreeHelpers.SetTreeValue(
        tree: designSettings,
        path: memberSlendernessesPath,
        value: 280
    );
    // Apply the updated design settings to the model
    await RfemApp.set_design_settings(
        addon: Rfem.DesignAddons.SteelDesign,
        globalSettingsTreeTable: designSettings
    );

}
catch (Exception ex)
{
    Console.WriteLine($"Error: {ex.Message}");
}
finally
{
    if (RfemApp != null) await RfemApp.close_connection();
}
