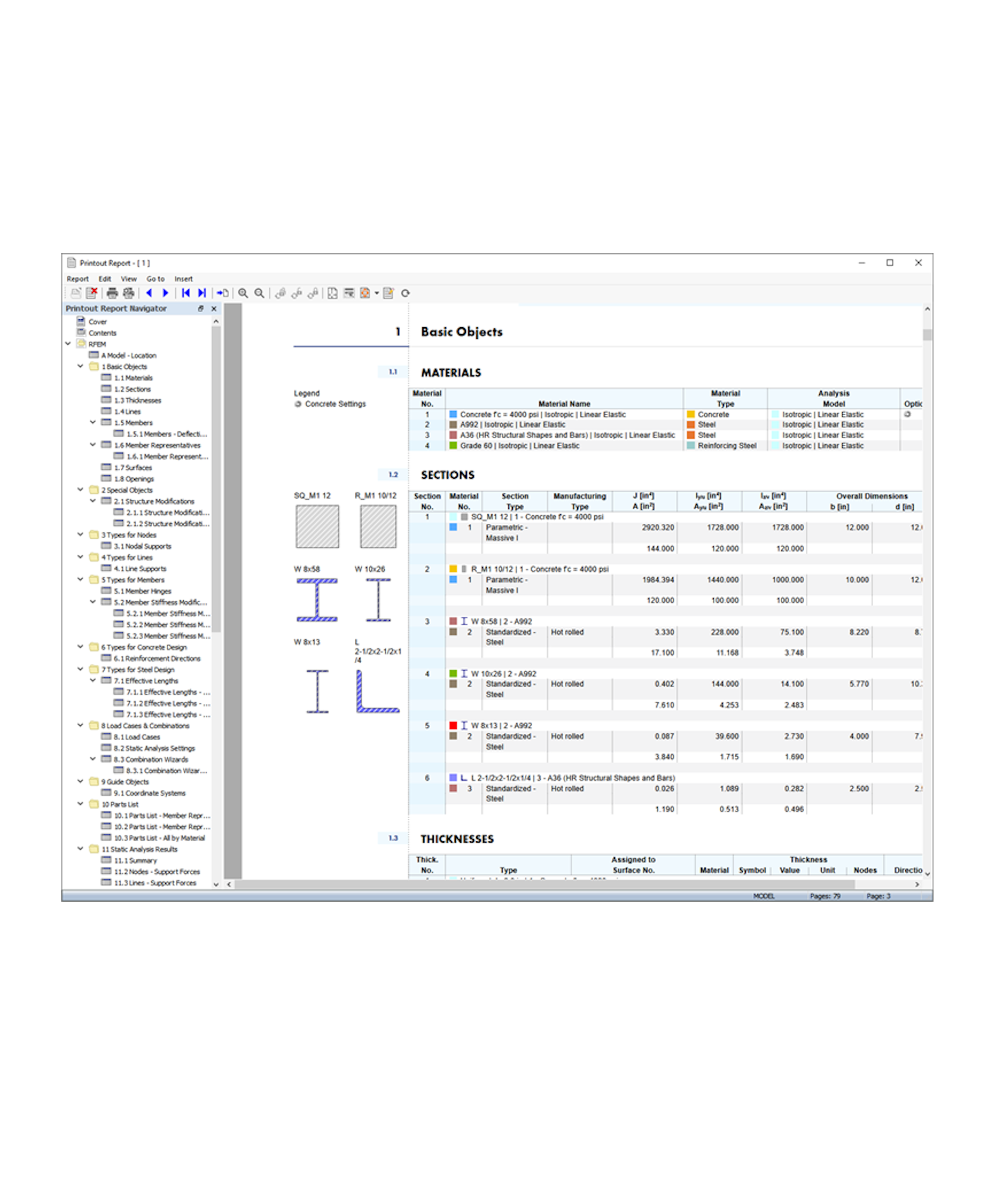

Printout Report#

Creating and exporting printout reports:

Create printout reports from templates
Get the list of printout reports in the model
Export printout reports to PDF format

Keywords:

printout report template PDF export report list

from pathlib import Path

from dlubal.api import common, rfem


with rfem.Application() as rfem_app:

    rfem_app.close_all_models(save_changes=False)
    rfem_app.create_model(name='printout_report')

    base_data_modif = rfem_app.get_base_data()
    base_data_modif.addons.steel_design_active = True
    rfem_app.set_base_data(base_data=base_data_modif)

    rfem_app.create_printout_report(
        name='Input data',
        load_from_template='Input data and reduced results',
    )

    rfem_app.create_printout_report(
        name='Steel Design',
        load_from_template='Steel Design',
    )

    report_list = rfem_app.get_printout_report_info_list()
    print(report_list)

    for report in report_list.printout_report_info:
        filepath = Path(f"{report.name}.pdf").resolve()
        rfem_app.export_printout_report_to(
            printout_report_no=report.id,
            filepath=str(filepath),
            export_attributes=common.printout_report.PdfExportAttributes()
        )

using Common = Dlubal.Api.Common;
using Google.Protobuf.WellKnownTypes;

ApplicationRfem? rfemApp = null;

try
{
    rfemApp = new ApplicationRfem();

    rfemApp.close_all_models(saveChanges: false);
    rfemApp.create_model(name: "printout_report");

    var baseDataModif = rfemApp.get_base_data();
    baseDataModif.Addons.SteelDesignActive = true;
    rfemApp.set_base_data(baseData: baseDataModif);

    rfemApp.create_printout_report(
        name: "Input data",
        loadFromTemplate: "Input data and reduced results"
    );

    rfemApp.create_printout_report(
        name: "Steel Design",
        loadFromTemplate: "Steel Design"
    );

    var reportList = rfemApp.get_printout_report_info_list();
    Console.WriteLine(reportList);

    foreach (var report in reportList.PrintoutReportInfo)
    {
        var filepath = Path.GetFullPath($"{report.Name}.pdf");
        rfemApp.export_printout_report_to(
            printoutReportNo: report.Id,
            filepath: filepath,
            exportAttributes: Any.Pack(new Common.PrintoutReport.PdfExportAttributes())
        );
    }
}
catch (Exception ex)
{
    Console.WriteLine($"Error: {ex.Message}");
}
finally
{
    if (rfemApp != null) rfemApp.close_connection();
}
