Effective Lengths#
|
This example demonstrates the stability design of a steel column using the equivalent member method according to EN 1993, which requires the definition of effective lengths.
|
from dlubal.api import rfem, common
from math import inf
import pandas
# -------------------------------------------------------
# This example demonstrates the stability analysis of a steel column
# using the equivalent member method, in accordance with DIN EN 1993-1-3:2020-11.
# It includes the definition of effective lengths and the extraction of detailed results
# related to buckling resistance and critical loading.
# -------------------------------------------------------
def define_structure_objects() -> list:
# The column is designed as a simply supported beam in the z-direction.
# It is laterally supported in the y-direction at one-third of the column height.
# In addition, rotation about the x-axis is prevented in the column center.
# The cross-section consists of two C-sections arranged back-to-back and connected by pairs of bolts in the web area.
return [
# Materials
rfem.structure_core.Material(
no=1,
user_defined_name_enabled=False,
name="S350GD 1.0529 | EN 10346:2015-10",
),
# Cross-Sections
rfem.structure_core.CrossSection(
no=1,
type=rfem.structure_core.CrossSection.TYPE_PARAMETRIC_THIN_WALLED,
parametrization_type=rfem.structure_core.CrossSection.PARAMETRIZATION_TYPE_PARAMETRIC_THIN_WALLED__2_C_SECTIONS__2C,
name="2C 0.25/0.08/0.0025/0.005/0.04/0/0.0025/C",
material=1,
),
# Nodes
rfem.structure_core.Node(
no=1,
),
rfem.structure_core.Node(
no=2,
coordinate_3=-8,
),
rfem.structure_core.Node(
no=3,
type=rfem.structure_core.Node.TYPE_ON_MEMBER,
on_member_reference_member=1,
distance_from_start_relative=0.25,
distance_from_start_absolute=2,
),
rfem.structure_core.Node(
no=4,
type=rfem.structure_core.Node.TYPE_ON_MEMBER,
on_member_reference_member=1,
distance_from_start_absolute=4,
),
rfem.structure_core.Node(
no=5,
type=rfem.structure_core.Node.TYPE_ON_MEMBER,
on_member_reference_member=1,
distance_from_start_relative=0.75,
distance_from_start_absolute=6,
),
# Lines
rfem.structure_core.Line(
no=1,
definition_nodes=[1, 2],
),
# Member
rfem.structure_core.Member(
no=1,
line=1,
cross_section_start=1,
),
# Nodal Supports
rfem.types_for_nodes.NodalSupport(
no=1,
user_defined_name_enabled=True,
name="Gelenkig",
nodes=[1],
spring=common.Vector3d(x=inf, y=inf, z=inf),
rotational_restraint=common.Vector3d(x=0, y=0, z=inf),
),
rfem.types_for_nodes.NodalSupport(
no=2,
nodes=[2],
spring=common.Vector3d(x=inf, y=inf, z=0),
rotational_restraint=common.Vector3d(x=0, y=0, z=inf),
),
rfem.types_for_nodes.NodalSupport(
no=3,
nodes=[3, 5],
spring=common.Vector3d(x=0, y=inf, z=0),
),
rfem.types_for_nodes.NodalSupport(
no=4,
nodes=[4],
spring=common.Vector3d(x=0, y=inf, z=0),
rotational_restraint=common.Vector3d(x=0, y=0, z=inf),
)
]
def define_loading_objects() -> list:
# The column is subjected to an axial compressive force and and three lateral loads.
return [
# Load Cases
rfem.loading.LoadCase(
no=1,
name="Design Load",
static_analysis_settings=1,
self_weight_active=False,
),
# Design Situations
rfem.loading.DesignSituation(
no=1,
user_defined_name_enabled = True,
name="ULS - Permanent and transient",
design_situation_type=rfem.loading.DesignSituation.DESIGN_SITUATION_TYPE_STR_PERMANENT_AND_TRANSIENT_6_10,
),
# Load Combinations
rfem.loading.LoadCombination(
no=1,
design_situation=1,
name="LC1",
static_analysis_settings=1,
combination_rule_str="LC1",
),
# Static Analysis Settings
rfem.loading.StaticAnalysisSettings(
no=1,
),
# Nodal Loads | LC1
rfem.loads.NodalLoad(
no=1,
nodes=[2],
force_magnitude=40000,
load_direction=rfem.loads.NodalLoad.LOAD_DIRECTION_GLOBAL_Z_OR_USER_DEFINED_W_TRUE_LENGTH,
load_case=1,
),
# Member Loads | LC1
rfem.loads.MemberLoad(
no=1,
members=[1],
load_case=1,
load_distribution=rfem.loads.MemberLoad.LOAD_DISTRIBUTION_CONCENTRATED_N,
load_direction=rfem.loads.MemberLoad.LOAD_DIRECTION_GLOBAL_X_OR_USER_DEFINED_U_TRUE_LENGTH,
magnitude=8000,
distance_a_absolute=2,
distance_b_absolute=2,
count_n=3,
)
]
def define_steel_design_objects() -> list:
return [
# Steel Design Configurations
rfem.steel_design_objects.SteelDesignUlsConfiguration(
no=1,
assigned_to_all_members=True,
),
rfem.steel_design_objects.SteelDesignSlsConfiguration(
no=1,
assigned_to_all_members=True,
),
# Design Supports for Steel
rfem.types_for_members.DesignSupport(
no=1,
type=rfem.types_for_members.DesignSupport.TYPE_STEEL,
user_defined_name_enabled=True,
name="Zwischenlager",
assigned_to_members=[1],
assigned_to_nodes=[3, 4, 5],
consider_in_deflection_design_y=False,
consider_in_deflection_design_z=False,
design_support_orientation_z=rfem.types_for_members.DesignSupport.DESIGN_SUPPORT_ORIENTATION_Z_BOTH,
support_width_z=0.064,
),

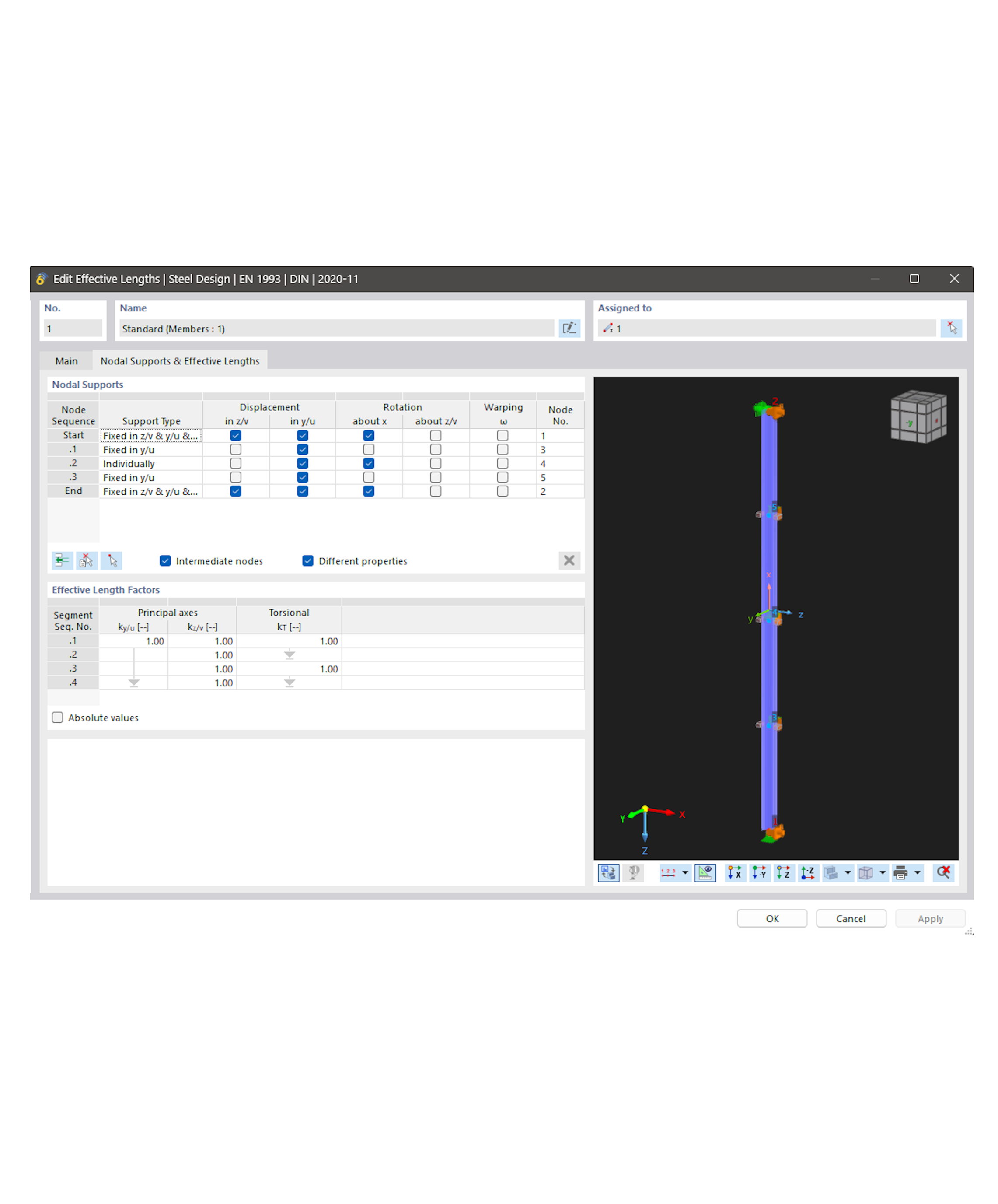

# Steel Effective Lengths
rfem.steel_design.SteelEffectiveLengths(
no=1,
members=[1],
flexural_buckling_about_y = True,
flexural_buckling_about_z = True,
torsional_buckling = True,
lateral_torsional_buckling = True,
principal_section_axes = True,
geometric_section_axes = False,
intermediate_nodes = True,
nodal_supports = rfem.steel_design.SteelEffectiveLengths.NodalSupportsTable(
rows = [
rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow(
no = 1,
nodes=[1],
support_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_TYPE_FIXED_IN_Z_Y_AND_TORSION,
support_in_z = True,
eccentricity_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.ECCENTRICITY_TYPE_NONE,
support_in_y = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_IN_Y_SUPPORT_STATUS_YES,
restraint_about_x = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_X_SUPPORT_STATUS_YES,
restraint_about_z = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_Z_SUPPORT_STATUS_NO,
restraint_warping = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_WARPING_SUPPORT_STATUS_NO,
),
rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow(
no = 2,
nodes=[3],
support_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_TYPE_FIXED_IN_Y,
support_in_z = False,
eccentricity_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.ECCENTRICITY_TYPE_NONE,
support_in_y = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_IN_Y_SUPPORT_STATUS_YES,
restraint_about_x = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_X_SUPPORT_STATUS_NO,
restraint_about_z = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_Z_SUPPORT_STATUS_NO,
restraint_warping = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_WARPING_SUPPORT_STATUS_NO,
),
rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow(
no = 3,
nodes=[4],
support_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_TYPE_INDIVIDUALLY,
support_in_z = False,
eccentricity_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.ECCENTRICITY_TYPE_NONE,
support_in_y = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_IN_Y_SUPPORT_STATUS_YES,
restraint_about_x = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_X_SUPPORT_STATUS_YES,
restraint_about_z = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_Z_SUPPORT_STATUS_NO,
restraint_warping = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_WARPING_SUPPORT_STATUS_NO,
),
rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow(
no = 4,
nodes=[5],
support_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_TYPE_FIXED_IN_Y,
support_in_z = False,
eccentricity_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.ECCENTRICITY_TYPE_NONE,
support_in_y = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_IN_Y_SUPPORT_STATUS_YES,
restraint_about_x = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_X_SUPPORT_STATUS_NO,
restraint_about_z = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_Z_SUPPORT_STATUS_NO,
restraint_warping = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_WARPING_SUPPORT_STATUS_NO,
),
rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow(
no = 5,
nodes=[2],
support_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_TYPE_FIXED_IN_Z_Y_AND_TORSION,
support_in_z = True,
eccentricity_type = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.ECCENTRICITY_TYPE_NONE,
support_in_y = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.SUPPORT_IN_Y_SUPPORT_STATUS_YES,
restraint_about_x = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_X_SUPPORT_STATUS_YES,
restraint_about_z = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_ABOUT_Z_SUPPORT_STATUS_NO,
restraint_warping = rfem.steel_design.SteelEffectiveLengths.NodalSupportsRow.RESTRAINT_WARPING_SUPPORT_STATUS_NO,
),
]
),
factors = rfem.steel_design.SteelEffectiveLengths.FactorsTable(
rows = [
rfem.steel_design.SteelEffectiveLengths.FactorsRow(
flexural_buckling_u = 1,
flexural_buckling_v = 1,
torsional_buckling = 1,
),
rfem.steel_design.SteelEffectiveLengths.FactorsRow(
flexural_buckling_v = 1,
),
rfem.steel_design.SteelEffectiveLengths.FactorsRow(
flexural_buckling_v = 1,
torsional_buckling = 1,
),
rfem.steel_design.SteelEffectiveLengths.FactorsRow(
flexural_buckling_v = 1,
),
]
),
different_properties = True,
factors_definition_absolute = False,
import_from_stability_analysis_enabled = False,
determination_mcr_europe = rfem.steel_design.SteelEffectiveLengths.DeterminationMcrEurope.DETERMINATION_MCR_EUROPE_EIGENVALUE,
),
]
def get_design_check_details_id(design_checks_df: pandas.DataFrame, check_type: str) -> int:
"""
This function filters the design checks DataFrame by the specified 'design_check_type'
and returns the 'design_check_details_id' corresponding to the row with the highest 'design_ratio'.
"""
# Filter the DataFrame based on 'design_check_type'
filtered_rows = design_checks_df[design_checks_df['design_check_type'] == check_type]
# Find the row with the maximum 'design_ratio'
max_row = filtered_rows.loc[filtered_rows['design_ratio'].idxmax()]
# Return the 'design_check_details_id' for that row
return max_row['design_check_details_id']
def get_design_check_value_by_key(design_check_details_df, key) -> str:
"""
This function extracts the 'value', 'unit', and 'caption' from the design check details
based on the specified 'key'.
"""
row = design_check_details_df.loc[design_check_details_df['key'] == key]
if row.empty:
raise ValueError(f"Key '{key}' not found in design check details.")
caption = row['caption'].values[0]
key = row['key'].values[0]
value = row['value'].values[0]
unit = row['unit'].values[0]
return f"{key} = {value} [{unit}]\t| {caption}"
# Connect to the RFEM application
with rfem.Application() as rfem_app:
# Initialize model
rfem_app.close_all_models(save_changes=False)
rfem_app.create_model(name="steel_design_effective_lengths.rf6")
# Edit base data
base_data = rfem_app.get_base_data()
base_data.addons.steel_design_active = True
base_data.standards.steel_design_standard = rfem.BaseData.Standards.STEEL_DESIGN_NATIONAL_ANNEX_AND_EDITION_EN_1993_DIN_2020_11_STANDARD
rfem_app.set_base_data(base_data=base_data)
rfem_app.delete_all_objects()
# Create model objects
rfem_app.create_object_list(
objs=
define_structure_objects()+
define_loading_objects()+
define_steel_design_objects()
)
# Calculate model
rfem_app.generate_combinations()
calculation_info = rfem_app.calculate_all(
skip_warnings=False
)
# Retrieve design check ratios
design_checks_df = rfem_app.get_results(
results_type=rfem.results.STEEL_DESIGN_MEMBERS_DESIGN_RATIOS,
).data
print(f"\nDesign Check Ratios:\n {design_checks_df}")
# Retrieve design check details
design_check_type = "ST3310.00" # Stability | Bending and compression
design_check_desc = design_checks_df.loc[design_checks_df['design_check_type'] == design_check_type, 'design_check_description'].values[0]
design_check_details_id = get_design_check_details_id(
design_checks_df=design_checks_df,
check_type=design_check_type
)
design_check_details_df = rfem_app.get_results(
results_type=rfem.results.STEEL_DESIGN_DESIGN_CHECK_DETAILS,
filters=[
rfem.results.ResultsFilter(
column_id="design_check_details_id",
filter_expression=str(design_check_details_id)
)
],
).data
print(f"\nDesign Check Details | {design_check_type} | {design_check_desc}:\n {design_check_details_df}")
# Extract specific data from the design details for the selected key
print(f"\nDesign Check Values | {design_check_type} | {design_check_desc}:")
print(get_design_check_value_by_key(design_check_details_df, key='n_c_ed'))
print(get_design_check_value_by_key(design_check_details_df, key='m_y_ed'))
print(get_design_check_value_by_key(design_check_details_df, key='a_eff'))
print(get_design_check_value_by_key(design_check_details_df, key='n_cr_y'))
print(get_design_check_value_by_key(design_check_details_df, key='lambdaand_773_y'))
print(get_design_check_value_by_key(design_check_details_df, key='m_cr'))
print(get_design_check_value_by_key(design_check_details_df, key='lambdaand_773_lt'))
print(get_design_check_value_by_key(design_check_details_df, key='n_b_rd'))
print(get_design_check_value_by_key(design_check_details_df, key='m_b_rd'))
