Member Stiffness Modification#

Modelling a concrete frame with member stiffness modifications to check impact on the deflection:

Create a single-bay 2D concrete frame
Apply different bending stiffness factors to the beam and columns
Create two ULS design situations with unreduced and reduced stiffness
Generate load combinations and assign the structure modification

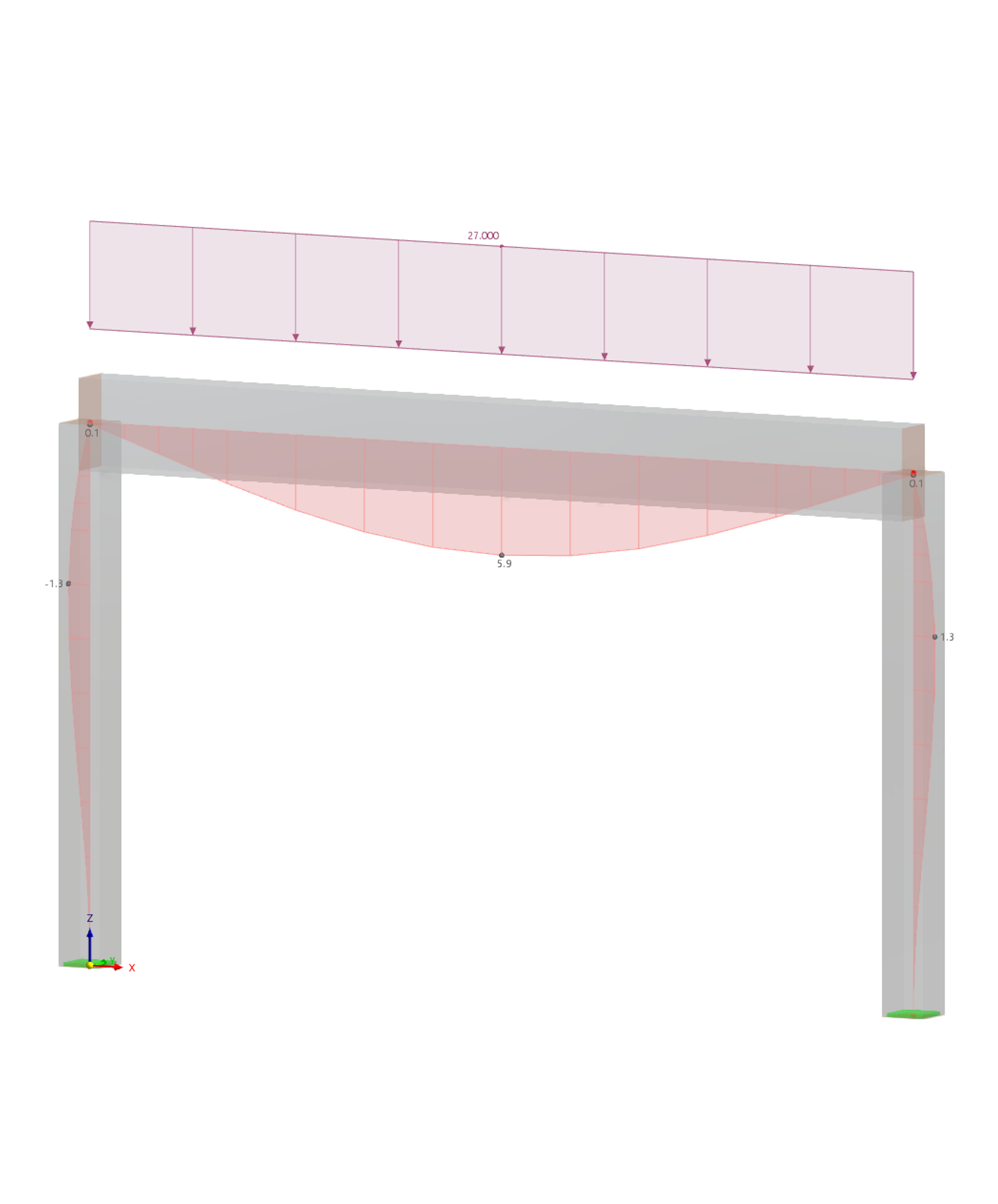

Calculate the model and retrieve maximum vertical member deformation for both combinations

Keywords:

frame member stiffness modification structure modification load combination member deformation

from math import inf

from dlubal.api import common, rfem

# -------------------------------------------------------
# Parametric concrete portal frame with member stiffness
# modifications:
#   - beam:    0.35 * EI
#   - columns: 0.70 * EI
#
# Assumptions:
#   - single-bay 2D frame in the global XZ plane
#   - Z-up coordinate system
#   - fixed supports at column bases
#   - C30/37 rectangular cross-sections for columns and beam
#   - stiffness reduction is applied to both local bending axes
#   - two ULS design situations are generated:
#       1) unreduced stiffness
#       2) reduced stiffness from the structure modification
# -------------------------------------------------------

# Editable parameters (SI units)
MODEL_NAME = "member_stiffness_modification"

FRAME_SPAN = 6.0
FRAME_HEIGHT = 3.5
MATERIAL = "C30/37"

COLUMN_CSS_WIDTH = 0.30
COLUMN_CSS_HEIGHT = 0.30
COLUMN_EI_FACTOR = 0.70
BEAM_CSS_WIDTH = 0.30
BEAM_CSS_HEIGHT = 0.60
BEAM_EI_FACTOR = 0.35

SELF_WEIGHT_ACTIVE = True
BEAM_DISTRIBUTED_LOAD = -20_000.0  # N/m, global Z direction


def define_structure() -> list:
    """Define and return the frame geometry, material, sections, and supports."""

    return [
        rfem.structure_core.Material(
            no=1,
            name=MATERIAL,
        ),
        rfem.structure_core.CrossSection(
            no=1,
            type=rfem.structure_core.CrossSection.TYPE_PARAMETRIC_MASSIVE_I,
            material=1,
            b=COLUMN_CSS_WIDTH,
            h=COLUMN_CSS_HEIGHT,
        ),
        rfem.structure_core.CrossSection(
            no=2,
            type=rfem.structure_core.CrossSection.TYPE_PARAMETRIC_MASSIVE_I,
            material=1,
            b=BEAM_CSS_WIDTH,
            h=BEAM_CSS_HEIGHT,
        ),
        # Nodes
        rfem.structure_core.Node(no=1, coordinate_1=0.0, coordinate_2=0.0, coordinate_3=0.0),
        rfem.structure_core.Node(no=2, coordinate_1=FRAME_SPAN, coordinate_2=0.0, coordinate_3=0.0),
        rfem.structure_core.Node(no=3, coordinate_1=0.0, coordinate_2=0.0, coordinate_3=FRAME_HEIGHT),
        rfem.structure_core.Node(no=4, coordinate_1=FRAME_SPAN, coordinate_2=0.0, coordinate_3=FRAME_HEIGHT),
        # Lines
        rfem.structure_core.Line(no=1, definition_nodes=[1, 3]),
        rfem.structure_core.Line(no=2, definition_nodes=[2, 4]),
        rfem.structure_core.Line(no=3, definition_nodes=[3, 4]),
        # Members: 1-2 columns, 3 beam
        rfem.structure_core.Member(no=1, line=1, cross_section_start=1),
        rfem.structure_core.Member(no=2, line=2, cross_section_start=1),
        rfem.structure_core.Member(no=3, line=3, cross_section_start=2),
        rfem.types_for_nodes.NodalSupport(
            no=1,
            nodes=[1, 2],
            spring=common.Vector3d(x=inf, y=inf, z=inf),
            rotational_restraint=common.Vector3d(x=inf, y=inf, z=inf),
        ),
    ]


def member_stiffness_modification(no: int, name: str, factor: float):
    """Create a member stiffness modification for bending stiffness EI."""

    return rfem.types_for_members.MemberStiffnessModification(
        no=no,
        user_defined_name_enabled=True,
        name=name,
        type=rfem.types_for_members.MemberStiffnessModification.TYPE_PARTIAL_STIFFNESSES_FACTORS,
        factor_of_axial_stiffness=1.0,
        factor_of_bending_y_stiffness=factor,
        factor_of_bending_z_stiffness=factor,
        partial_stiffness_factor_of_shear_y_stiffness=1.0,
        partial_stiffness_factor_of_shear_z_stiffness=1.0,
        partial_stiffness_factor_of_torsion_stiffness=1.0,
        partial_stiffness_factor_of_weight=1.0,
    )


def define_stiffness_modification() -> list:
    """Define member modifications and assign them to columns and beam."""

    return [
        member_stiffness_modification(
            no=1,
            name=f"Columns: {COLUMN_EI_FACTOR:.2f} EI",
            factor=COLUMN_EI_FACTOR,
        ),
        member_stiffness_modification(
            no=2,
            name=f"Beam: {BEAM_EI_FACTOR:.2f} EI",
            factor=BEAM_EI_FACTOR,
        ),
        rfem.structure_advanced.StructureModification(
            no=1,
            user_defined_name_enabled=True,
            name="Reduced member bending stiffness",
            modify_stiffnesses_members=True,
            modify_stiffnesses_member_table=rfem.structure_advanced.StructureModification.ModifyStiffnessesMemberTable(
                rows=[
                    rfem.structure_advanced.StructureModification.ModifyStiffnessesMemberTableRow(
                        no=1,
                        description=f"Columns {COLUMN_EI_FACTOR:.2f} EI",
                        member_modification=1,
                        members=[1, 2],
                    ),
                    rfem.structure_advanced.StructureModification.ModifyStiffnessesMemberTableRow(
                        no=2,
                        description=f"Beam {BEAM_EI_FACTOR:.2f} EI",
                        member_modification=2,
                        members=[3],
                    ),
                ]
            ),
        ),
    ]


def define_loading() -> list:
    """Define loads, combination wizards, and two ULS design situations."""

    return [
        rfem.loading.StaticAnalysisSettings(
            no=1,
            analysis_type=rfem.loading.StaticAnalysisSettings.ANALYSIS_TYPE_GEOMETRICALLY_LINEAR,
        ),
        rfem.loading.LoadCase(
            no=1,
            name="Permanent loads",
            action_category=rfem.loading.LoadCase.ACTION_CATEGORY_PERMANENT_G,
            static_analysis_settings=1,
            self_weight_active=SELF_WEIGHT_ACTIVE,
        ),
        rfem.loads.MemberLoad(
            no=1,
            load_case=1,
            members=[3],
            load_type=rfem.loads.MemberLoad.LOAD_TYPE_FORCE,
            load_distribution=rfem.loads.MemberLoad.LOAD_DISTRIBUTION_UNIFORM,
            load_direction=rfem.loads.MemberLoad.LOAD_DIRECTION_GLOBAL_Z_OR_USER_DEFINED_W_TRUE_LENGTH,
            magnitude=BEAM_DISTRIBUTED_LOAD,
        ),
        rfem.loading.CombinationWizard(
            no=1,
            user_defined_name_enabled=True,
            name="Combinations - unreduced stiffness",
            static_analysis_settings=1,
            generate_combinations=rfem.loading.CombinationWizard.GENERATE_COMBINATIONS_LOAD_COMBINATIONS,
        ),
        rfem.loading.CombinationWizard(
            no=2,
            user_defined_name_enabled=True,
            name="Combinations - reduced stiffness",
            static_analysis_settings=1,
            generate_combinations=rfem.loading.CombinationWizard.GENERATE_COMBINATIONS_LOAD_COMBINATIONS,
            structure_modification_enabled=True,
            structure_modification=1,
        ),
        rfem.loading.DesignSituation(
            no=1,
            user_defined_name_enabled=True,
            name="ULS - unreduced stiffness",
            design_situation_type=rfem.loading.DesignSituation.DESIGN_SITUATION_TYPE_STR_PERMANENT_AND_TRANSIENT_6_10,
            combination_wizard=1,
            active=True,
        ),
        rfem.loading.DesignSituation(
            no=2,
            user_defined_name_enabled=True,
            name="ULS - reduced stiffness",
            design_situation_type=rfem.loading.DesignSituation.DESIGN_SITUATION_TYPE_STR_PERMANENT_AND_TRANSIENT_6_10,
            combination_wizard=2,
            active=True,
        ),
    ]


with rfem.Application() as rfem_app:

    print(f"\nCreating model: {MODEL_NAME}")
    rfem_app.create_model(name=MODEL_NAME)

    base_data = rfem_app.get_base_data()
    base_data.main.surfaces_active = False
    base_data.combinations_settings.combination_wizard_active = True
    base_data.general_settings.global_axes_orientation = (
        rfem.BaseData.GeneralSettings.GLOBAL_AXES_ORIENTATION_ZUP
    )
    rfem_app.set_base_data(base_data=base_data)

    rfem_app.delete_all_objects()
    rfem_app.create_object_list(
        define_structure()
        + define_stiffness_modification()
        + define_loading()
    )

    rfem_app.generate_combinations()

    load_combinations = rfem_app.get_object_list([rfem.loading.LoadCombination()])
    print("\nGenerated Load Combinations:")
    for load_combination in load_combinations:
        structure_modification = (
            load_combination.structure_modification
            if load_combination.structure_modification_enabled
            else "none"
        )
        print(
            f"CO{load_combination.no}: "
            f"{load_combination.name}, "
            f"structure modification: {structure_modification}"
        )

    calculation_info = rfem_app.calculate_all(skip_warnings=True)
    print(f"\nCalculation Succeeded:\n{calculation_info.succeeded}")

    print("\nMaximum vertical member deflection by load combination:")
    for load_combination in load_combinations:
        member_deformation_df = rfem_app.get_results(
            results_type=rfem.results.STATIC_ANALYSIS_MEMBERS_LOCAL_DEFORMATIONS,
            filters=[
                rfem.results.ResultsFilter(
                    column_id="loading",
                    filter_expression=f"CO{load_combination.no}",
                ),
            ],
        ).data

        max_u_z = member_deformation_df["u_z"].abs().max()
        print(f"CO{load_combination.no}: Max |u_z|: {max_u_z}")

using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using Common = Dlubal.Api.Common;
using Google.Protobuf;
using Rfem = Dlubal.Api.Rfem;

// -------------------------------------------------------
// Parametric concrete portal frame with member stiffness
// modifications:
//   - beam:    0.35 * EI
//   - columns: 0.70 * EI
//
// Assumptions:
//   - single-bay 2D frame in the global XZ plane
//   - Z-up coordinate system
//   - fixed supports at column bases
//   - C30/37 rectangular cross-sections for columns and beam
//   - stiffness reduction is applied to both local bending axes
//   - two ULS design situations are generated:
//       1) unreduced stiffness
//       2) reduced stiffness from the structure modification
// -------------------------------------------------------

// Editable parameters (SI units)
const string MODEL_NAME = "member_stiffness_modification";

const double FRAME_SPAN = 6.0;
const double FRAME_HEIGHT = 3.5;
const string MATERIAL = "C30/37";

const double COLUMN_CSS_WIDTH = 0.30;
const double COLUMN_CSS_HEIGHT = 0.30;
const double COLUMN_EI_FACTOR = 0.70;
const double BEAM_CSS_WIDTH = 0.30;
const double BEAM_CSS_HEIGHT = 0.60;
const double BEAM_EI_FACTOR = 0.35;

const bool SELF_WEIGHT_ACTIVE = true;
const double BEAM_DISTRIBUTED_LOAD = -20_000.0; // N/m, global Z direction

static List<IMessage> DefineStructure()
{
    return new List<IMessage>
    {
        new Rfem.StructureCore.Material
        {
            No = 1,
            Name = MATERIAL,
        },
        new Rfem.StructureCore.CrossSection
        {
            No = 1,
            Type = Rfem.StructureCore.CrossSection.Types.Type.ParametricMassiveI,
            Material = 1,
            B = COLUMN_CSS_WIDTH,
            H = COLUMN_CSS_HEIGHT,
        },
        new Rfem.StructureCore.CrossSection
        {
            No = 2,
            Type = Rfem.StructureCore.CrossSection.Types.Type.ParametricMassiveI,
            Material = 1,
            B = BEAM_CSS_WIDTH,
            H = BEAM_CSS_HEIGHT,
        },
        // Nodes
        new Rfem.StructureCore.Node
        {
            No = 1,
            Coordinate1 = 0.0,
            Coordinate2 = 0.0,
            Coordinate3 = 0.0,
        },
        new Rfem.StructureCore.Node
        {
            No = 2,
            Coordinate1 = FRAME_SPAN,
            Coordinate2 = 0.0,
            Coordinate3 = 0.0,
        },
        new Rfem.StructureCore.Node
        {
            No = 3,
            Coordinate1 = 0.0,
            Coordinate2 = 0.0,
            Coordinate3 = FRAME_HEIGHT,
        },
        new Rfem.StructureCore.Node
        {
            No = 4,
            Coordinate1 = FRAME_SPAN,
            Coordinate2 = 0.0,
            Coordinate3 = FRAME_HEIGHT,
        },
        // Lines
        new Rfem.StructureCore.Line
        {
            No = 1,
            DefinitionNodes = { 1, 3 },
        },
        new Rfem.StructureCore.Line
        {
            No = 2,
            DefinitionNodes = { 2, 4 },
        },
        new Rfem.StructureCore.Line
        {
            No = 3,
            DefinitionNodes = { 3, 4 },
        },
        // Members: 1-2 columns, 3 beam
        new Rfem.StructureCore.Member
        {
            No = 1,
            Line = 1,
            CrossSectionStart = 1,
        },
        new Rfem.StructureCore.Member
        {
            No = 2,
            Line = 2,
            CrossSectionStart = 1,
        },
        new Rfem.StructureCore.Member
        {
            No = 3,
            Line = 3,
            CrossSectionStart = 2,
        },
        new Rfem.TypesForNodes.NodalSupport
        {
            No = 1,
            Nodes = { 1, 2 },
            Spring = new Common.Vector3d { X = double.PositiveInfinity, Y = double.PositiveInfinity, Z = double.PositiveInfinity },
            RotationalRestraint = new Common.Vector3d { X = double.PositiveInfinity, Y = double.PositiveInfinity, Z = double.PositiveInfinity },
        },
    };
}

static Rfem.TypesForMembers.MemberStiffnessModification MemberStiffnessModification(int no, string name, double factor)
{
    return new Rfem.TypesForMembers.MemberStiffnessModification
    {
        No = no,
        UserDefinedNameEnabled = true,
        Name = name,
        Type = Rfem.TypesForMembers.MemberStiffnessModification.Types.Type.PartialStiffnessesFactors,
        FactorOfAxialStiffness = 1.0,
        FactorOfBendingYStiffness = factor,
        FactorOfBendingZStiffness = factor,
        PartialStiffnessFactorOfShearYStiffness = 1.0,
        PartialStiffnessFactorOfShearZStiffness = 1.0,
        PartialStiffnessFactorOfTorsionStiffness = 1.0,
        PartialStiffnessFactorOfWeight = 1.0,
    };
}

static List<IMessage> DefineStiffnessModification()
{
    return new List<IMessage>
    {
        MemberStiffnessModification(
            no: 1,
            name: $"Columns: {COLUMN_EI_FACTOR:F2} EI",
            factor: COLUMN_EI_FACTOR
        ),
        MemberStiffnessModification(
            no: 2,
            name: $"Beam: {BEAM_EI_FACTOR:F2} EI",
            factor: BEAM_EI_FACTOR
        ),
        new Rfem.StructureAdvanced.StructureModification
        {
            No = 1,
            UserDefinedNameEnabled = true,
            Name = "Reduced member bending stiffness",
            ModifyStiffnessesMembers = true,
            ModifyStiffnessesMemberTable = new Rfem.StructureAdvanced.StructureModification.Types.ModifyStiffnessesMemberTable
            {
                Rows =
                {
                    new Rfem.StructureAdvanced.StructureModification.Types.ModifyStiffnessesMemberTableRow
                    {
                        No = 1,
                        Description = $"Columns {COLUMN_EI_FACTOR:F2} EI",
                        MemberModification = 1,
                        Members = { 1, 2 },
                    },
                    new Rfem.StructureAdvanced.StructureModification.Types.ModifyStiffnessesMemberTableRow
                    {
                        No = 2,
                        Description = $"Beam {BEAM_EI_FACTOR:F2} EI",
                        MemberModification = 2,
                        Members = { 3 },
                    },
                },
            },
        },
    };
}

static List<IMessage> DefineLoading()
{
    return new List<IMessage>
    {
        new Rfem.Loading.StaticAnalysisSettings
        {
            No = 1,
            AnalysisType = Rfem.Loading.StaticAnalysisSettings.Types.AnalysisType.GeometricallyLinear,
        },
        new Rfem.Loading.LoadCase
        {
            No = 1,
            Name = "Permanent loads",
            ActionCategory = Rfem.Loading.LoadCase.Types.ActionCategory.PermanentG,
            StaticAnalysisSettings = 1,
            SelfWeightActive = SELF_WEIGHT_ACTIVE,
        },
        new Rfem.Loads.MemberLoad
        {
            No = 1,
            LoadCase = 1,
            Members = { 3 },
            LoadType = Rfem.Loads.MemberLoad.Types.LoadType.Force,
            LoadDistribution = Rfem.Loads.MemberLoad.Types.LoadDistribution.Uniform,
            LoadDirection = Rfem.Loads.MemberLoad.Types.LoadDirection.GlobalZOrUserDefinedWTrueLength,
            Magnitude = BEAM_DISTRIBUTED_LOAD,
        },
        new Rfem.Loading.CombinationWizard
        {
            No = 1,
            UserDefinedNameEnabled = true,
            Name = "Combinations - unreduced stiffness",
            StaticAnalysisSettings = 1,
            GenerateCombinations = Rfem.Loading.CombinationWizard.Types.GenerateCombinations.LoadCombinations,
        },
        new Rfem.Loading.CombinationWizard
        {
            No = 2,
            UserDefinedNameEnabled = true,
            Name = "Combinations - reduced stiffness",
            StaticAnalysisSettings = 1,
            GenerateCombinations = Rfem.Loading.CombinationWizard.Types.GenerateCombinations.LoadCombinations,
            StructureModificationEnabled = true,
            StructureModification = 1,
        },
        new Rfem.Loading.DesignSituation
        {
            No = 1,
            UserDefinedNameEnabled = true,
            Name = "ULS - unreduced stiffness",
            DesignSituationType = Rfem.Loading.DesignSituation.Types.DesignSituationType.StrPermanentAndTransient610,
            CombinationWizard = 1,
            Active = true,
        },
        new Rfem.Loading.DesignSituation
        {
            No = 2,
            UserDefinedNameEnabled = true,
            Name = "ULS - reduced stiffness",
            DesignSituationType = Rfem.Loading.DesignSituation.Types.DesignSituationType.StrPermanentAndTransient610,
            CombinationWizard = 2,
            Active = true,
        },
    };
}

static double ParseDoubleInvariant(object? value)
{
    if (value is null) return double.NaN;

    if (value is double d) return d;

    return double.TryParse(
        Convert.ToString(value, CultureInfo.InvariantCulture),
        NumberStyles.Any,
        CultureInfo.InvariantCulture,
        out var parsed
    )
        ? parsed
        : double.NaN;
}

ApplicationRfem? rfemApp = null;

try
{
    rfemApp = new ApplicationRfem();

    Console.WriteLine($"\nCreating model: {MODEL_NAME}");
    rfemApp.create_model(name: MODEL_NAME);

    var baseData = rfemApp.get_base_data();
    baseData.Main.SurfacesActive = false;
    baseData.CombinationsSettings.CombinationWizardActive = true;
    baseData.GeneralSettings.GlobalAxesOrientation = Rfem.BaseData.Types.GeneralSettings.Types.GlobalAxesOrientation.Zup;
    rfemApp.set_base_data(baseData: baseData);

    rfemApp.delete_all_objects();
    rfemApp.create_object_list(
        DefineStructure()
            .Concat(DefineStiffnessModification())
            .Concat(DefineLoading())
            .ToList()
    );

    rfemApp.generate_combinations();

    var loadCombinations = rfemApp.get_object_list(new List<IMessage> { new Rfem.Loading.LoadCombination() })
        .OfType<Rfem.Loading.LoadCombination>()
        .ToList();

    Console.WriteLine("\nGenerated Load Combinations:");
    foreach (var loadCombination in loadCombinations)
    {
        var structureModification = loadCombination.StructureModificationEnabled
            ? loadCombination.StructureModification.ToString(CultureInfo.InvariantCulture)
            : "none";

        Console.WriteLine(
            $"CO{loadCombination.No}: {loadCombination.Name}, structure modification: {structureModification}"
        );
    }

    var calculationInfo = rfemApp.calculate_all(skipWarnings: true);
    Console.WriteLine($"\nCalculation Succeeded:\n{calculationInfo.Succeeded}");

    Console.WriteLine("\nMaximum vertical member deflection by load combination:");
    foreach (var loadCombination in loadCombinations)
    {
        var memberDeformation = rfemApp.get_results(
            resultsType: Rfem.Results.ResultsType.StaticAnalysisMembersLocalDeformations,
            filters: new List<Rfem.Results.ResultsFilter>
            {
                new Rfem.Results.ResultsFilter
                {
                    ColumnId = "loading",
                    FilterExpression = $"CO{loadCombination.No}",
                },
            }
        );

        var maxAbsUz = memberDeformation.Data.Rows
            .Select(row => ParseDoubleInvariant(row["u_z"]))
            .Where(v => !double.IsNaN(v))
            .Select(Math.Abs)
            .DefaultIfEmpty(double.NaN)
            .Max();

        Console.WriteLine($"CO{loadCombination.No}: Max |u_z|: {maxAbsUz}");
    }
}
catch (Exception ex)
{
    Console.WriteLine($"Error: {ex.Message}");
}
finally
{
    if (rfemApp != null) rfemApp.close_connection();
}
